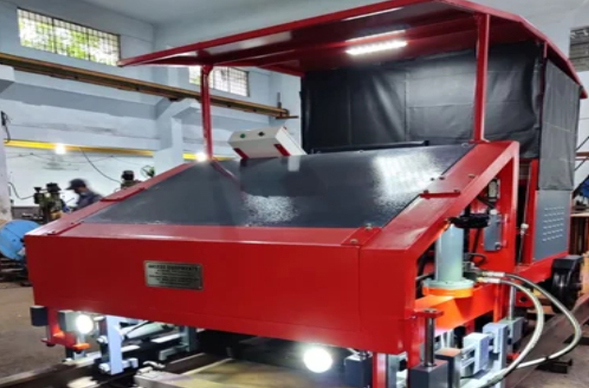

Railway Clip Applicators in India has been developed and manufactured by Aacess Equipments, Hyderabad, primarily to be used on railway track for Clipping and De-clipping of ERC clips during distressing of rails. The unit is a powered using a powerful diesel engine and all the operations are done using hydraulic power. The advantage of this unit is that it can clip or de-clip upto 20 clips per minute and is designed to perform all the operations with proper interlocks to ensure accident free operation. By use of this machine, the requirement of manpower will be limited to only 3 members which gives an enormous benefit. Capacity: 250kgs.

Specification Value
Type of Machine Clip Applicator Semi Automatic Unit
Clipping Arrangement for Sleeper Provided for Clipping 4 clips at a time
No of Clips fitted per min 20clips
Mode of Operation Through RRC through a PLC
Safety Interlocks for accident free operation Electrical Interlocks provided
Clipping Arrangement for Sleeper Provided for Clipping 4 clips at a time
Braking System for the Unit Provided with Hydraulic Brake
Max. Speed of the Trolley 18mts/min
No. of Wheels on the Trolley 4 nos
Min. Speed of the Trolley 1 mts/min
Tools for Clipping Provided
Tolls for De Clipping Provided
Control Procedure for the unit Through Hydraulic Operated Valves
Capacity of Diesel Engine 20 hp
Fuel Used Diesel
Type of Cooling Water
Make of the Diesel Engine Yanmar - Japan
Type of Start Electric Start
Enclosure for the Unit Provided
Control Panel NA
Length of Trolley 2.5 mts
Width of the Trolley 2 mts
Working Height of the Trolley 500 mm
